Mounting Option Help

Standoff

Included with your sign will be 4 to 6 polished standoffs that must be mounted to the wall with wall anchors.  With standoff mounting the face of your sign will be offset from the wall approximetly 1.4".

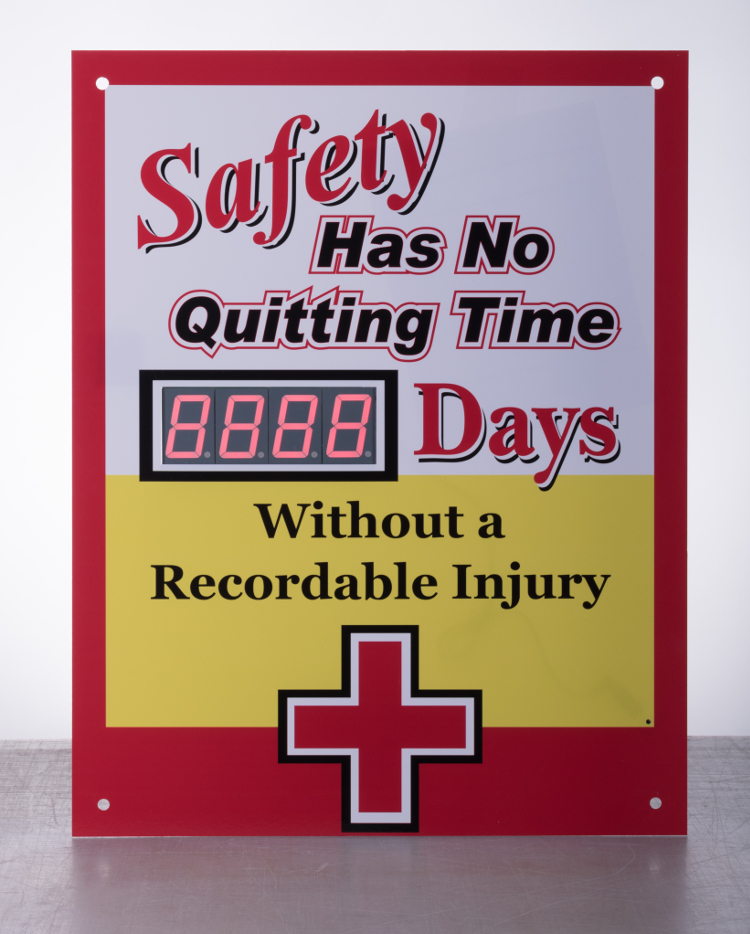

Your sign will have holes for the standoffs drilled in the correct locations.

Please review our standoff mounting instructions.

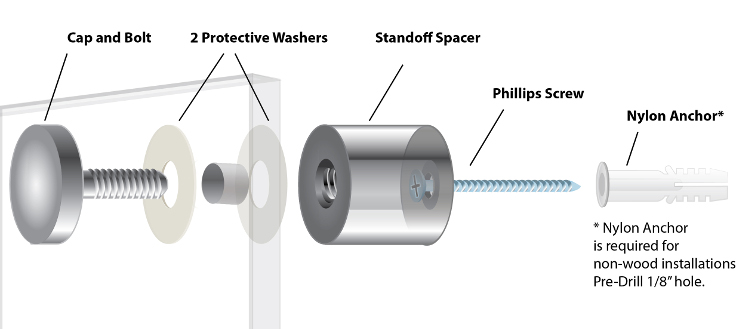

Standoff Assembly Diagram

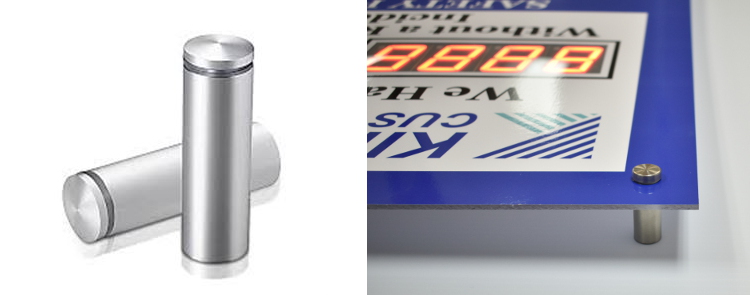

Example Standoff Mounted Sign

Basic Frame

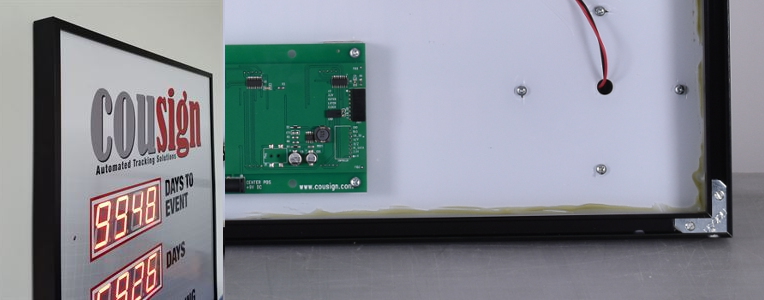

Your sign will arrive mounted in a quality backless aluminum black matte frame suitable for mounting indoors.  Total depth of the frame is 1.4" and can hang on the wall like a picture frame. The sign face will be adhered to the frame using a two part epoxy which adds strength for shipping and use.

Please review our basic frame mounting guidance.

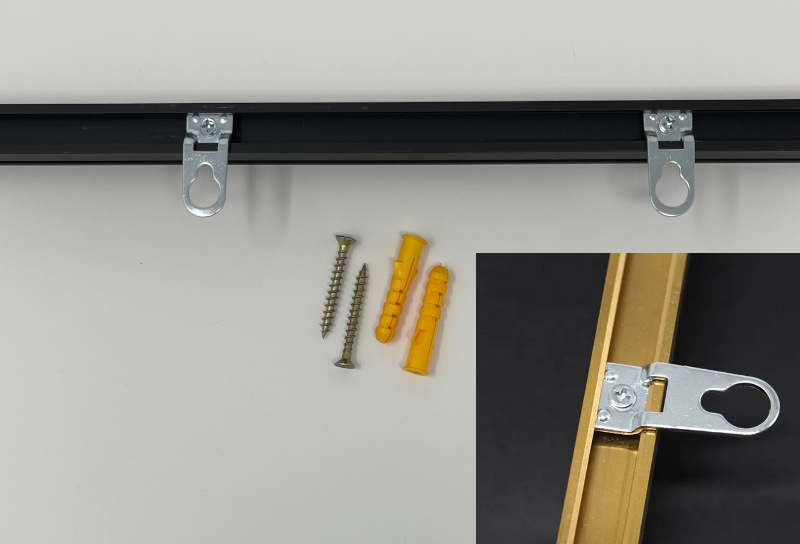

Included with the basic frame is a set of backhooks with wall anchrors and screws.  The backhooks are afixed to the frame facing downward which allow the head of the anchor screw to rest securely in the top of the teardrop, ensuring your sign is securely fastened to the wall.

Outdoor Enclosure

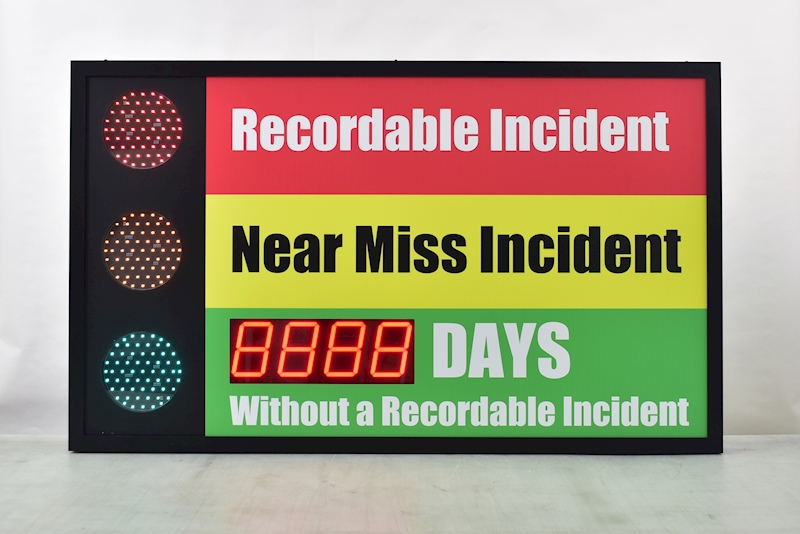

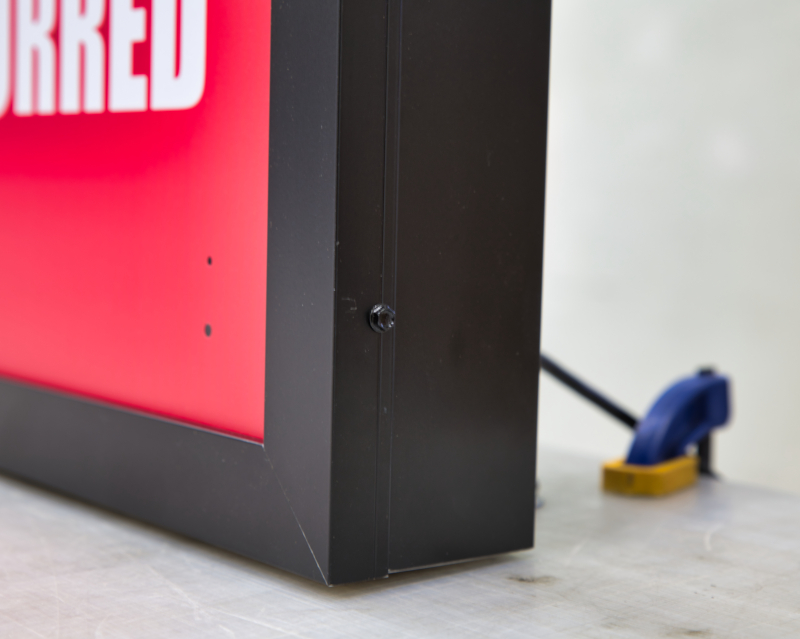

Outdoor signs are shipped with a 3 3/4" black powder-coated sign-grade extrusion frame, accompanied by a .040-inch aluminum back panel. Additionally, numeric display windows are treated with a red light filter overlay, enhancing display visibility in sunlight.

MOUNTING HARDWARE IS NOT INCLUDED.
Your sign will not come with mounting hardware or pre-drilled holes for mounting. Typically, all you'll need are several lag bolts. However, because there are numerous mounting options available, we leave the final mounting decisions up to you. It's worth noting that fewer holes mean fewer opportunities for moisture to enter the enclosure!

OUTDOOR RATED, NOT WATER PROOF.
These enclosures are industry-standard for outdoor use, specifically designed for signs mounted outside. However, it's important to note that they are not waterproof. While the back panel and aluminum extrusions feature a water-tight seal, the sign's face is removable for serviceability, which introduces the potential for water intrusion during heavy rain or wind.

To address this, the extrusions include drip channels to mitigate most water intrusion. Despite these measures, some moisture may still enter the enclosure. This is normal, and any moisture inside will typically evaporate on its own without impacting the sign's operation.

For additional protection, you could consider adding weather stripping along the retainers to create a tighter seal (weather stripping not included). However, even with this extra precaution, it's important to note that some moisture may still penetrate the enclosure. Generally, this is not a cause for concern.

ELECTRICIAN REQUIRED.
Outdoor enclosures come equipped with a hardwired power supply that is appropriately sized for your sign. To ensure optimal performance and safety, it's crucial to enlist the services of a qualified electrician for proper installation and wiring. Please note that a standard 3-prong power cord will be included for testing purposes only and is not intended for permanent use.

Please review our outdoor mounting guidance prior to purchasing a sign with an outdoor enclosure.

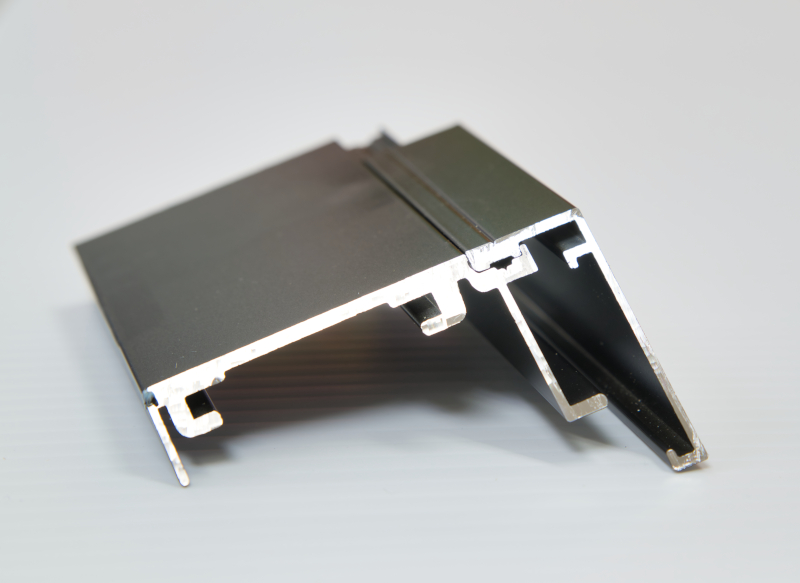

The outdoor enclosure is made from these two extrusions.  On the left is the main enclosure and the right is the retaining clip that will hold the sign face to the enclosure.

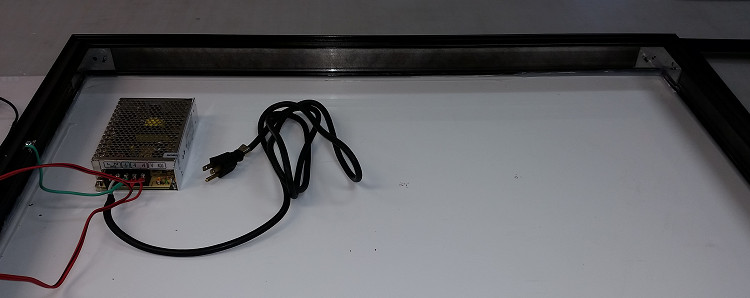

A suitable power supply is included inside the enclosure.  It will accept both 110V and 220V inputs via a selector switch.  Signs will ship with the 110V setting preselected.  A test power cord is included and intended for testing/verification of operation only.

DO NOT USE THIS CORD FOR INSTALLATION

You will need to contact a licensed electrician to install your sign according to your local electrical code requirements.
